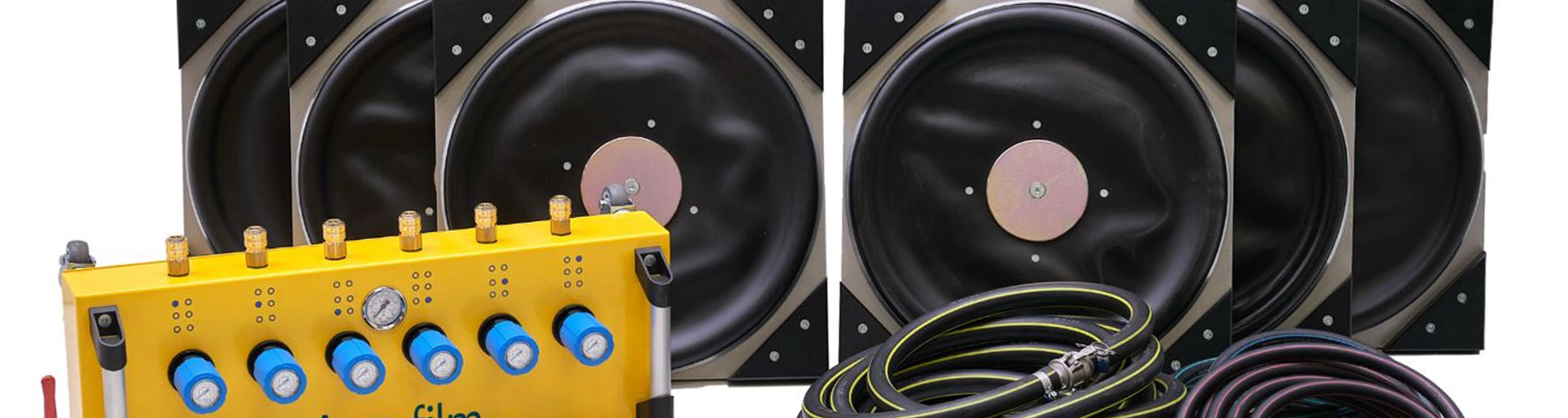

Load Module Systems - Farley & Associates, Inc.

Neoprene | 4 Modules | Standard Duty
^{Max working pressure 30 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-4-B8N	B8N	4,560 lbs.	28-72	100 lbs.
TS-10-B12N	B12N	10,000 lbs.	44-84	130 lbs.
TS-17-B15N	B15N	17,000 lbs.	56-100	150 lbs.
TS-32-B21N	B21N	32,000 lbs.	72-112	200 lbs.
TS-56-B27N	B27N	56,000 lbs.	84-140	400 lbs.
TS-100-B36N	B36N	100,000 lbs.	112-184	580 lbs.
TS-192-B48N	B48N	192,000 lbs.	140-220	750 lbs.

Neoprene | 4 Modules | Heavy Duty
^{Max working pressure 60 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-9-B8HD	B8HD	9,120 lbs.	36-72	100 lbs.
TS-20-B12HD	B12HD	20,000 lbs.	64-124	130 lbs.
TS-34-B15HD	B15HD	34,000 lbs.	100-184	150 lbs.
TS-64-B21HD	B21HD	64,000 lbs.	120-212	200 lbs.
TS-112-B27HD	B27HD	112,000 lbs.	140-268	400 lbs.
TS-200-B36HD	B36HD	200,000 lbs.	196-352	580 lbs.
TS-384-B48HD	B48HD	384,000 lbs.	256-396	750 lbs.
TS-520-B60HD	B60HD	520,000 lbs.	320-495	1,000 lbs.

Neoprene | 6 Modules | Standard Duty
^{Max working pressure 30 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-6-B8N	B8N	6,840 lbs.	42-108	150 lbs.
TS-15-B12N	B12N	15,000 lbs.	66-126	195 lbs.
TS-25-B15N	B15N	25,500 lbs.	84-150	225 lbs.
TS-48-B21N	B21N	48,000 lbs.	108-168	300 lbs.
TS-84-B27N	B27N	84,000 lbs.	126-210	600 lbs.
TS-144-B36N	B36N	144,000 lbs.	168-276	870 lbs.
TS-288-B48N	B48N	288,000 lbs.	210-330	1,125 lbs.

Neoprene | 6 Modules | Heavy Duty
^{Max working pressure 60 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-13-B8HD	B8H	13,680 lbs.	54-108	150 lbs.
TS-30-B12HD	B12H	30,000 lbs.	96-186	195 lbs.
TS-51-B15HD	B15H	51,000 lbs.	150-276	225 lbs.
TS-96-B21HD	B21H	96,000 lbs.	180-318	300 lbs.
TS-168-B27HD	B27H	168,000 lbs.	210-402	600 lbs.
TS-300-B36HD	B36H	300,000 lbs.	294-528	870 lbs.
TS-576-B48HD	B48H	576,000 lbs.	384-594	1,125 lbs.
TS-780-B60HD	B60H	780,000 lbs.	480-743	1,500 lbs.

Polyurethane | 4 Modules | Standard Duty
^{Max working pressure 15 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-1-P8N	P8N	1,760 lbs.	8-16	150 lbs.
TS-2-P10N	P10N	2,640 lbs.	12-20	170 lbs.
TS-4-P12N	P12N	4,400 lbs.	16-28	195 lbs.
TS-8-P15N	P15N	8,800 lbs.	16-36	225 lbs.
TS-16-P20N	P20N	16,000 lbs.	36-64	300 lbs.
TS-26-P27N	P27N	26,400 lbs.	60-104	600 lbs.
TS-52-P35N	P35N	52,800 lbs.	72-140	870 lbs.

Polyurethane | 4 Modules | Heavy Duty
^{Max working pressure 30 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-8-P12HD	P12HD	8,800 lbs.	16-36	195 lbs.
TS-17-P15HD	P15HD	17,600 lbs.	36-64	225 lbs.
TS-32-P20HD	P20HD	32,000 lbs.	60-104	300 lbs.
TS-52-P27HD	P27HD	52,800 lbs.	72-112	600 lbs.
TS-105-P35HD	P35HD	105,600 lbs.	100-156	870 lbs.

Polyurethane | 6 Modules | Standard Duty
^{Max working pressure 15 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-2-P8N	P8N	2,640 lbs.	12-24	225 lbs.
TS-3-P10N	P10N	2,960 lbs.	18-30	255 lbs.
TS-6-P12N	P12N	6,600 lbs.	24-42	293 lbs.
TS-13-P15N	P15N	13,200 lbs.	24-54	338 lbs.
TS-24-P20N	P20N	24,000 lbs.	54-96	450 lbs.
TS-39-P27N	P27N	39,600 lbs.	90-156	900 lbs.
TS-79-P35N	P35N	79,200 lbs.	108-210	1,305 lbs.

Polyurethane | 6 Modules | Heavy Duty
^{Max working pressure 30 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-13-P12HD	P12HD	13,200 lbs.	24-54	293 lbs.
TS-26-P15HD	P15HD	26,400 lbs.	54-96	338 lbs.
TS-48-P20HD	P20HD	48,000 lbs.	90-156	450 lbs.
TS-79-P27HD	P27HD	79,200 lbs.	108-168	900 lbs.
TS-158-P35HD	P35HD	158,400 lbs.	150-234	1,305 lbs.

Gapcrosser | 4 Modules | Standard Duty
^{Max working pressure 15 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-2-B8NC	B8NC	2,280 lbs.	8-16	100 lbs.
TS-5-B12NC	B12NC	5,000 lbs.	28-60	130 lbs.
TS-8-B15NC	B15NC	8,500 lbs.	44-72	150 lbs.
TS-16-B21NC	B21NC	16,000 lbs.	56-88	200 lbs.
TS-28-B27NC	B27NC	28,000 lbs.	72-100	400 lbs.
TS-48-B36NC	B36NC	48,000 lbs.	80-128	580 lbs.

Gapcrosser | 4 Modules | Heavy Duty
^{Max working pressure 30 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-17-B15HC	B15HC	17,000 lbs.	64-108	150 lbs.
TS-32-B21HC	B21HC	32,000 lbs.	84-128	200 lbs.
TS-56-B27HC	B27HC	56,000 lbs.	112-156	400 lbs.
TS-96-B36HC	B36HC	96,000 lbs.	128-200	580 lbs.

Gapcrosser | 6 Modules | Standard Duty
^{Max working pressure 15 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-3-B8NC	B8NC	3,420 lbs.	12-24	150 lbs.
TS-7-B12NC	B12NC	7,500 lbs.	42-90	195 lbs.
TS-12-B15NC	B15NC	12,750 lbs.	66-108	225 lbs.
TS-24-B21NC	B21NC	24,000 lbs.	84-132	300 lbs.
TS-42-B27NC	B27NC	42,000 lbs.	108-150	600 lbs.
TS-72-B36NC	B36NC	72,000 lbs.	120-192	870 lbs.

Gapcrosser | 6 Modules | Heavy Duty
^{Max working pressure 30 psi}

Type	Air Caster Type	System Capacity	Air Consumption CFM	System Weight
TS-25-B15HC	B15HC	25,500 lbs.	96-162	225 lbs.
TS-48-B21HC	B21HC	48,000 lbs.	126-192	300 lbs.
TS-84-B27HC	B27HC	84,000 lbs.	168-234	600 lbs.
TS-144-B36HC	B36HC	144,000 lbs.	192-300	870 lbs.
