Load Module Systems

Load Module Systems Specifications

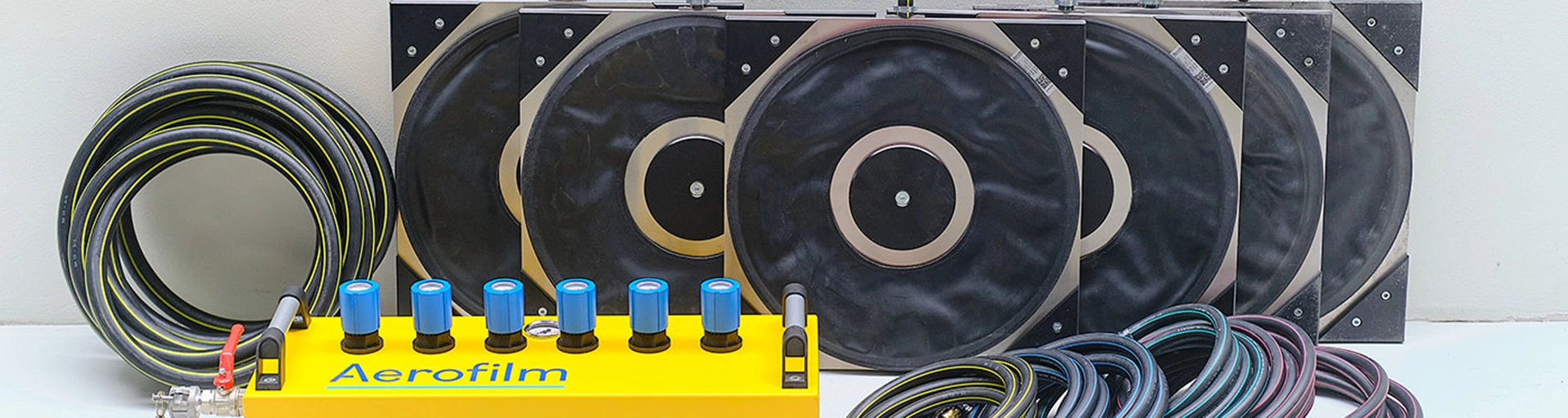

Modular air caster systems by Aerofilm Systems are complete sets that include everything you need, such as air casters, support plates, landing pads, air regulator manifolds, and hoses. These systems provide the most economical solution for moving heavy loads up to 240 tons with ease and safety. For more information, explore our load module systems specifications to find the right fit for your application.

While the measurements on this page are shown using Imperial units, we also offer Metric sizes. Please contact us for more information.

  • Neoprene
  • 4 Modules
  • Standard Duty
  • Neoprene
  • 4 Modules
  • Heavy Duty
  • Neoprene
  • 6 Modules
  • Standard Duty
  • Neoprene
  • 6 Modules
  • Heavy Duty
  • Polyurethane
  • 4 Modules
  • Standard Duty
  • Polyurethane
  • 4 Modules
  • Heavy Duty
  • Polyurethane
  • 6 Modules
  • Standard Duty
  • Polyurethane
  • 6 Modules
  • Heavy Duty
  • Gapcrosser
  • 4 Modules
  • Standard Duty
  • Gapcrosser
  • 4 Modules
  • Heavy Duty
  • Gapcrosser
  • 6 Modules
  • Standard Duty
  • Gapcrosser
  • 6 Modules
  • Heavy Duty

Neoprene | 4 Modules | Standard Duty

Max working pressure 30 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-4-B8N B8N 4,560 lbs. 28-72 100 lbs.
TS-10-B12N B12N 10,000 lbs. 44-84 130 lbs.
TS-17-B15N B15N 17,000 lbs. 56-100 150 lbs.
TS-32-B21N B21N 32,000 lbs. 72-112 200 lbs.
TS-56-B27N B27N 56,000 lbs. 84-140 400 lbs.
TS-100-B36N B36N 100,000 lbs. 112-184 580 lbs.
TS-192-B48N B48N 192,000 lbs. 140-220 750 lbs.

Neoprene | 4 Modules | Heavy Duty

Max working pressure 60 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-9-B8HD B8HD 9,120 lbs. 36-72 100 lbs.
TS-20-B12HD B12HD 20,000 lbs. 64-124 130 lbs.
TS-34-B15HD B15HD 34,000 lbs. 100-184 150 lbs.
TS-64-B21HD B21HD 64,000 lbs. 120-212 200 lbs.
TS-112-B27HD B27HD 112,000 lbs. 140-268 400 lbs.
TS-200-B36HD B36HD 200,000 lbs. 196-352 580 lbs.
TS-384-B48HD B48HD 384,000 lbs. 256-396 750 lbs.
TS-520-B60HD B60HD 520,000 lbs. 320-495 1,000 lbs.

Neoprene | 6 Modules | Standard Duty

Max working pressure 30 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-6-B8N B8N 6,840 lbs. 42-108 150 lbs.
TS-15-B12N B12N 15,000 lbs. 66-126 195 lbs.
TS-25-B15N B15N 25,500 lbs. 84-150 225 lbs.
TS-48-B21N B21N 48,000 lbs. 108-168 300 lbs.
TS-84-B27N B27N 84,000 lbs. 126-210 600 lbs.
TS-144-B36N B36N 144,000 lbs. 168-276 870 lbs.
TS-288-B48N B48N 288,000 lbs. 210-330 1,125 lbs.

Neoprene | 6 Modules | Heavy Duty

Max working pressure 60 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-13-B8HD B8H 13,680 lbs. 54-108 150 lbs.
TS-30-B12HD B12H 30,000 lbs. 96-186 195 lbs.
TS-51-B15HD B15H 51,000 lbs. 150-276 225 lbs.
TS-96-B21HD B21H 96,000 lbs. 180-318 300 lbs.
TS-168-B27HD B27H 168,000 lbs. 210-402 600 lbs.
TS-300-B36HD B36H 300,000 lbs. 294-528 870 lbs.
TS-576-B48HD B48H 576,000 lbs. 384-594 1,125 lbs.
TS-780-B60HD B60H 780,000 lbs. 480-743 1,500 lbs.

Polyurethane | 4 Modules | Standard Duty

Max working pressure 15 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-1-P8N P8N 1,760 lbs. 8-16 150 lbs.
TS-2-P10N P10N 2,640 lbs. 12-20 170 lbs.
TS-4-P12N P12N 4,400 lbs. 16-28 195 lbs.
TS-8-P15N P15N 8,800 lbs. 16-36 225 lbs.
TS-16-P20N P20N 16,000 lbs. 36-64 300 lbs.
TS-26-P27N P27N 26,400 lbs. 60-104 600 lbs.
TS-52-P35N P35N 52,800 lbs. 72-140 870 lbs.

Polyurethane | 4 Modules | Heavy Duty

Max working pressure 30 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-8-P12HD P12HD 8,800 lbs. 16-36 195 lbs.
TS-17-P15HD P15HD 17,600 lbs. 36-64 225 lbs.
TS-32-P20HD P20HD 32,000 lbs. 60-104 300 lbs.
TS-52-P27HD P27HD 52,800 lbs. 72-112 600 lbs.
TS-105-P35HD P35HD 105,600 lbs. 100-156 870 lbs.

Polyurethane | 6 Modules | Standard Duty

Max working pressure 15 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-2-P8N P8N 2,640 lbs. 12-24 225 lbs.
TS-3-P10N P10N 2,960 lbs. 18-30 255 lbs.
TS-6-P12N P12N 6,600 lbs. 24-42 293 lbs.
TS-13-P15N P15N 13,200 lbs. 24-54 338 lbs.
TS-24-P20N P20N 24,000 lbs. 54-96 450 lbs.
TS-39-P27N P27N 39,600 lbs. 90-156 900 lbs.
TS-79-P35N P35N 79,200 lbs. 108-210 1,305 lbs.

Polyurethane | 6 Modules | Heavy Duty

Max working pressure 30 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-13-P12HD P12HD 13,200 lbs. 24-54 293 lbs.
TS-26-P15HD P15HD 26,400 lbs. 54-96 338 lbs.
TS-48-P20HD P20HD 48,000 lbs. 90-156 450 lbs.
TS-79-P27HD P27HD 79,200 lbs. 108-168 900 lbs.
TS-158-P35HD P35HD 158,400 lbs. 150-234 1,305 lbs.

Gapcrosser | 4 Modules | Standard Duty

Max working pressure 15 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-2-B8NC B8NC 2,280 lbs. 8-16 100 lbs.
TS-5-B12NC B12NC 5,000 lbs. 28-60 130 lbs.
TS-8-B15NC B15NC 8,500 lbs. 44-72 150 lbs.
TS-16-B21NC B21NC 16,000 lbs. 56-88 200 lbs.
TS-28-B27NC B27NC 28,000 lbs. 72-100 400 lbs.
TS-48-B36NC B36NC 48,000 lbs. 80-128 580 lbs.

Gapcrosser | 4 Modules | Heavy Duty

Max working pressure 30 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-17-B15HC B15HC 17,000 lbs. 64-108 150 lbs.
TS-32-B21HC B21HC 32,000 lbs. 84-128 200 lbs.
TS-56-B27HC B27HC 56,000 lbs. 112-156 400 lbs.
TS-96-B36HC B36HC 96,000 lbs. 128-200 580 lbs.

Gapcrosser | 6 Modules | Standard Duty

Max working pressure 15 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-3-B8NC B8NC 3,420 lbs. 12-24 150 lbs.
TS-7-B12NC B12NC 7,500 lbs. 42-90 195 lbs.
TS-12-B15NC B15NC 12,750 lbs. 66-108 225 lbs.
TS-24-B21NC B21NC 24,000 lbs. 84-132 300 lbs.
TS-42-B27NC B27NC 42,000 lbs. 108-150 600 lbs.
TS-72-B36NC B36NC 72,000 lbs. 120-192 870 lbs.

Gapcrosser | 6 Modules | Heavy Duty

Max working pressure 30 psi

Type Air Caster Type System Capacity Air Consumption CFM System Weight
TS-25-B15HC B15HC 25,500 lbs. 96-162 225 lbs.
TS-48-B21HC B21HC 48,000 lbs. 126-192 300 lbs.
TS-84-B27HC B27HC 84,000 lbs. 168-234 600 lbs.
TS-144-B36HC B36HC 144,000 lbs. 192-300 870 lbs.
