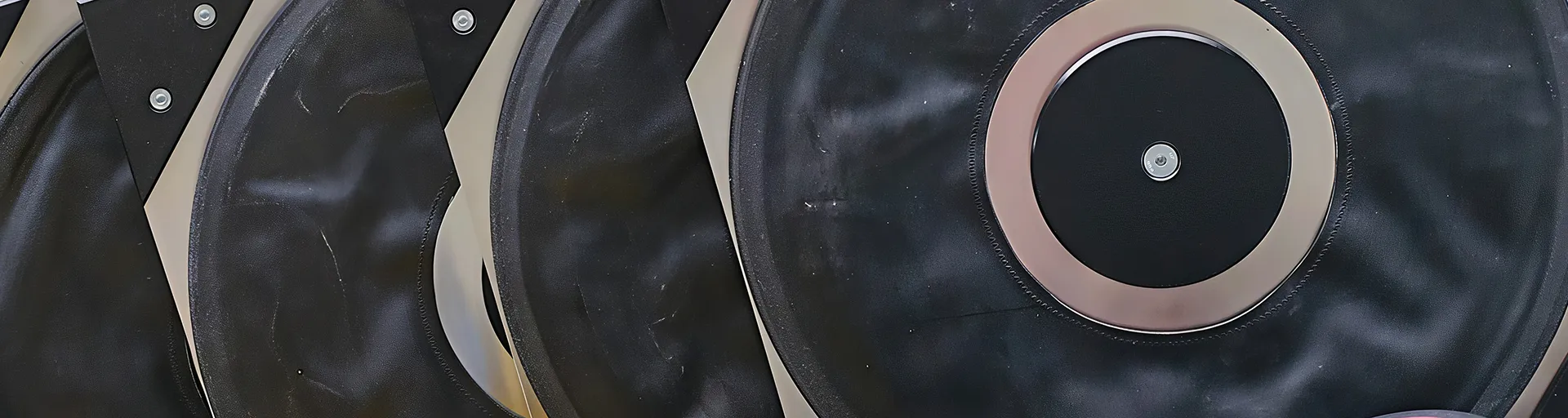

Aerofilm Systems provides an extensive selection of replacement and spare air casters for your operational needs. Each air caster is crafted from premium materials, ensuring durability and longevity. To assist you in making an informed decision, we offer comprehensive specifications for each air caster, allowing you to select the perfect size and type for your specific requirements.
Neoprene | Standard Duty
Max working pressure 30 psi
Type | Capacity | Size Inch | Weight | Effective Lift Inch | Air Connection Inch | Air Consumption CFM |
|---|---|---|---|---|---|---|
| B8N | 1,140 lbs. | 8 x 8 x 3/8 | 1 lbs. | 3/8 | 1/4 | 7-18 |
| B12N | 2,500 lbs. | 12 x 12 x 3/8 | 1 lbs. | 5/7 | 1/4 | 11-21 |
| B15N | 4,250 lbs. | 15 x 15 x 3/8 | 2 lbs. | 7/8 | 1/4 | 14-25 |
| B21N | 8,000 lbs. | 21 x 21 x 1/2 | 4 lbs. | 1 | 1/2 | 18-28 |
| B27N | 14,000 lbs. | 27 x 27 x 5/8 | 7 lbs. | 1 6/7 | 1/2 | 21-35 |
| B36N | 25,000 lbs. | 36 x 36 x 1 1/8 | 14 lbs. | 2 | 3/4 | 38-46 |
| B48N | 48,000 lbs. | 48 x 48 x 1 1/8 | 42 lbs. | 2 5/8 | 1 | 35-55 |
Neoprene | Heavy Duty
Max working pressure 60 psi
Type | Capacity | Size Inch | Weight | Effective Lift Inch | Air Connection Inch | Air Consumption CFM |
|---|---|---|---|---|---|---|
| B8HD | 2,280 lbs. | 8 x 8 x 3/8 | 1 lbs. | 3/8 | 1/4 | 9-18 |
| B12HD | 5,000 lbs. | 12 x 12 x 3/8 | 1 lbs. | 5/7 | 1/4 | 16-31 |
| B15HD | 8,500 lbs. | 15 x 15 x 3/8 | 2 lbs. | 7/8 | 1/4 | 25-46 |
| B21HD | 16,000 lbs. | 21 x 21 x 1/2 | 4 lbs. | 1 | 1/2 | 30-53 |
| B27HD | 28,000 lbs. | 27 x 27 x 5/8 | 7 lbs. | 2 | 1/2 | 35-67 |
| B36HD | 50,000 lbs. | 36 x 36 x 1 1/8 | 14 lbs. | 2 1/5 | 3/4 | 49-88 |
| B48HD | 96,000 lbs. | 48 x 48 x 1 1/8 | 44 lbs. | 2 5/8 | 1 | 64-99 |
| B60HD | 130,000 lbs. | 60 x 60 x 1 1/5 | 58 lbs. | 3 | 1 | 135-145 |
Neoprene | High Lift | Standard Duty
Max working pressure 30 psi
Type | Capacity | Size Inch | Weight | Effective Lift Inch | Air Connection Inch | Air Consumption CFM |
|---|---|---|---|---|---|---|
| B12HLN | 2,500 lbs. | 12 x 12 x 3/8 | 1 lbs. | 1 1/7 | 1/4 | 11-21 |
| B15HLN | 4,250 lbs. | 15 x 15 x 3/8 | 2 lbs. | 1 3/8 | 1/4 | 14-25 |
| B21HLN | 8,000 lbs. | 21 x 21 x 1/2 | 4 lbs. | 1 3/4 | 1/2 | 18-28 |
Aqua Casters | Heavy Duty
| Type | Capacity | Size Inch | Weight | Effective Lift Inch | Pressure | Water Gallon per min |
|---|---|---|---|---|---|---|
| B90HW | 44,000 lbs. | 35.4 x 35.4 x 1 1/8 | 16 lbs. | 1 3/5 | 60 psi | 16 |
| B125HW | 88,000 lbs. | 49.2 x 49.2 x 1 1/8 | 46 lbs. | 2 | 60 psi | 20 |
| B127EHW | 99,000 lbs. | 50 x 50 x 1 1/8 | 48 lbs. | 2 | 70 psi | 25 |
| B150HW | 130,000 lbs. | 59 x 59 x 1 1/5 | 60 lbs. | 2 1/2 | 60 psi | 32 |
| B150EHW | 175,000 lbs. | 59 x 59 x 1 1/5 | 61 lbs. | 2 1/2 | 78 psi | 40 |
Polyurethane | Standard Duty
Max working pressure 15 psi
Type | Capacity | Size Inch | Weight | Effective Lift Inch | Air Connection Inch | Air Consumption CFM |
|---|---|---|---|---|---|---|
| P8N | 440 lbs. | ø 7.87 x 1 | 2 lbs. | 1/6 | 1/4 | 2-4 |
| P10N | 660 lbs. | ø 9.84 x 1 | 2 lbs. | 1/6 | 1/4 | 3-5 |
| P12N | 1,100 lbs. | ø 11.81 x 1 | 3 lbs. | 1/6 | 1/4 | 4-7 |
| P15N | 2,200 lbs. | ø 15.75 x 1 | 5 lbs. | 1/2 | 1/4 | 4-9 |
| P20N | 4,000 lbs. | ø 19.69 x 1 | 8 lbs. | 2/3 | 1/2 | 9-16 |
| P27N | 6,600 lbs. | ø 27.56 x 1 | 10 lbs. | 5/9 | 1/2 | 15-26 |
| P35N | 13,200 lbs. | ø 35.43 x 1 | 15 lbs. | 1/2 | 3/4 | 18-35 |
Polyurethane | Heavy Duty
Max working pressure 30 psi
| Type | Capacity | Size Inch | Weight | Effective Lift Inch | Air Connection Inch | Air Consumption CFM |
|---|---|---|---|---|---|---|
| P12HD | 2,200 lbs. | ø 11.81 x 1 | 4 lbs. | 1/3 | 1/4 | 4-9 |
| P15HD | 4,400 lbs. | ø 15.75 x 1 | 6 lbs. | 2/5 | 1/4 | 9-16 |
| P20HD | 8,000 lbs. | ø 19.69 x 1 | 8 lbs. | 1/2 | 1/2 | 15-26 |
| P27HD | 13,200 lbs. | ø 27.56 x 1 | 10 lbs. | 3/4 | 1/2 | 18-28 |
| P35HD | 26,400 lbs. | ø 35.43 x 1 | 15 lbs. | 1 | 3/4 | 25-39 |
Gapcrosser | Standard Duty
Max working pressure 15 psi
Type | Capacity | Size Inch | Weight | Effective Lift Inch | Air Connection Inch | Air Consumption CFM |
|---|---|---|---|---|---|---|
| B8NC | 570 lbs. | 8 x 8 x 3/8 | 1 lbs. | 4/5 | 1/4 | 2-4 |
| B12NC | 1,250 lbs. | 12 x 12 x 3/8 | 1 lbs. | 1 1/4 | 1/4 | 7-15 |
| B15NC | 2,125 lbs. | 15 x 15 x 3/8 | 2 lbs. | 1 5/8 | 1/4 | 11-18 |
| B21NC | 4,000 lbs. | 21 x 21 x 1/2 | 4 lbs. | 1 1/2 | 1/2 | 14-22 |
| B27NC | 7,000 lbs. | 27 x 27 x 5/8 | 7 lbs. | 2 | 3/4 | 18-25 |
| B36NC | 12,000 lbs. | 36 x 36 x 1 1/8 | 14 lbs. | 2 1/5 | 1 | 20-32 |
Gapcrosser | Heavy Duty
Max working pressure 30 psi
| Type | Capacity | Size Inch | Weight | Effective Lift Inch | Air Connection Inch | Air Consumption CFM |
|---|---|---|---|---|---|---|
| B15HC | 4,250 lbs. | 15 x 15 x 3/8 | 2 lbs. | 1 5/8 | 1/4 | 16-27 |
| B21HC | 8,000 lbs. | 21 x 21 x 1/2 | 4 lbs. | 1 1/2 | 1/2 | 21-32 |
| B27HC | 14,000 lbs. | 27 x 27 x 5/8 | 7 lbs. | 2 | 3/4 | 28-39 |
| B36HC | 24,000 lbs. | 36 x 36 x 1 1/8 | 14 lbs. | 2 1/5 | 1 | 32-50 |
